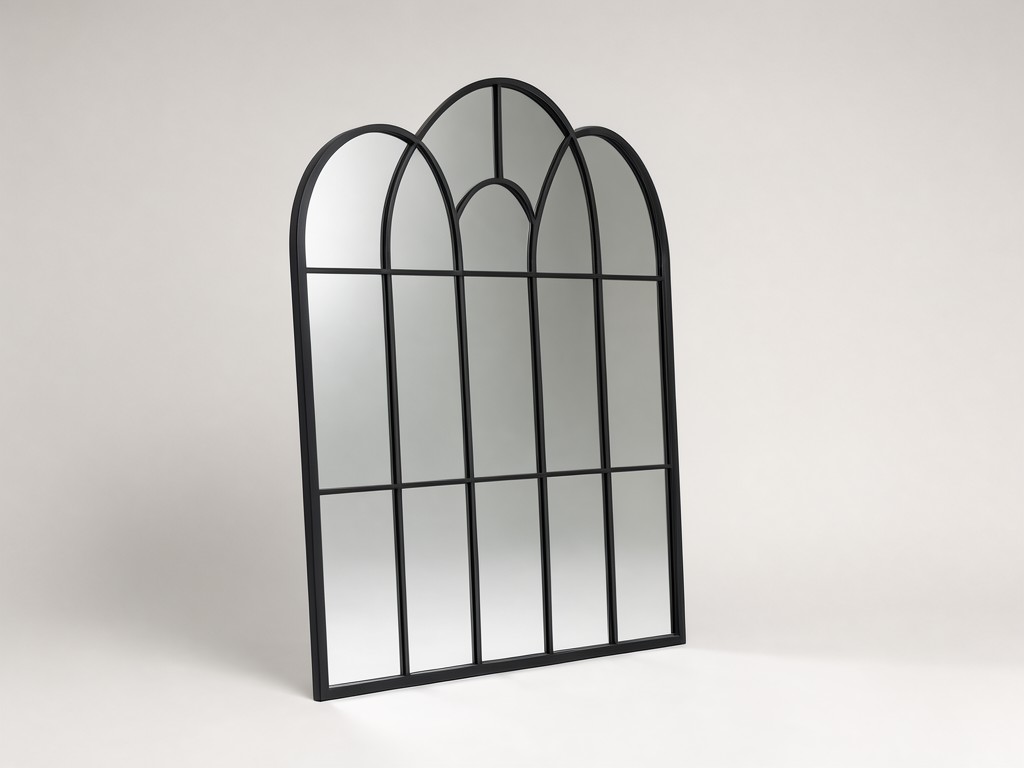

Factory Direct Extra Large Arched Window Mirror Company - Bulk Supply and Specification Guide
Replacement rate, not unit price, dictates the profitability of large-scale architectural glass orders. Total cost of ownership shifts once returns are counted, particularly when transit-induced fractures or silvering degradation occur in large-format units. Our manufacturing process focuses on the mechanical stability of the substrate and the structural integrity of the arched frame to ensure low de-lamination claim rates for high-volume retail distribution.
What the Design Has to Balance
The geometry of an arched mirror introduces specific stress points at the apex of the curve. Unlike rectangular units, the curved edge requires uniform pressure distribution to prevent spontaneous glass cracking if the frame tension is not perfectly calibrated. We utilize 6mm to 8mm float glass for these spans to mitigate the risk of bowing during flat-wall mounting.
Technical Trade-off: Weight vs. Stability
Increasing glass thickness from 4mm to 6mm increases impact resistance but raises the load requirement on the mounting hardware. For units exceeding 200cm in height, we recommend reinforced aluminum extrusions which maintain the arched profile tolerance within a +/- 1.5mm margin without the weight-penalty of cheaper timber-framed alternatives.
Frame expansion coefficients must also be accounted for in climates with high temperature fluctuations. Metal frames contract at different rates than the glass, which can lead to edge-binding. We use specialized silicone-based adhesives that allow for micro-movement preventing fractures during seasonal thermal cycles.
Where This Product Beats Standard Alternatives
| Feature | Standard Retail Mirror | Architectural Grade Arched |
|---|---|---|
| Backing Type | Standard silvering | Copper-free anti-corrosion |
| Edge Treatment | Raw beveled | Polished flat orbeveled-edge |
| Load Capacity | Wall-mount only | Tempered-rated safety glass |
Size, Weight and Specification Range
Dimensions
Standard widths range from 600mm to 1800mm. Arched heights typically reach 2000mm-2400mm. Custom radius curves are available via CNC-cutting jigs.
Material Options
Frames include powder-coated aluminum, moisture-resistant MDF, or stainless steel. Glass options include clear, tinted, or safety-lpered layers.
Weight Specs
Average weight varies from 12kg to 45kg depending on thickness. Requires heavy-duty Z-brackets for large-format installation.
Buying Mistakes That Lead to Returns
Ignoring the edge-seal quality is the primary cause of long-term warranty claims (edge rot). In humid environments, standard silvering oxidizes from the edge inward, creating black spots. We specify copper-free silvering and moisture-barrier edge paint to prevent this.
Underestimating the transit packaging requirements for arched glass leads to high breakage rates. Large mirrors are susceptible to vibration-induced stress. Without internal wooden-crate reinforcement and foam-density perimeter blocking, the apex of the arch often becomes the point of structural failure during sea freight.
What Gets Checked Before Shipment
- Dimensional tolerance checks to ensure the arch radius matches the template within 2mm.
- Surface inspection under polarized light to detect scratches or imperfections in the silvering layer.
- Load-testing of mounting hardware sets to verify weight-bearing capacity.
- Salt spray testing on metal frame components to ensure powder-coating adhesion durability.
Capacity, Tooling and Scheduling
Tooling amortisation decides the unit price for custom-profile frames. For high-volume orders exceeding 500 units, the CNC-cutting setup costs are spread across the batch. Our production line handles 200-300 units per month depending on the complexity of the frame finish and curing requirements.
Ordering, Tooling and Lead-Time Questions
What is the standard lead time for custom-sized arches?
Standard orders typically ship within 35-45 days. Custom-radius frames requiring new extrusions require 60-90 days to account for tooling fabrication.
Can you provide private-label branding on the frame?
Yes, we offer laser-engraved logos or custom-printed metal plates on the rear frame assembly as part of the OEM service package.
